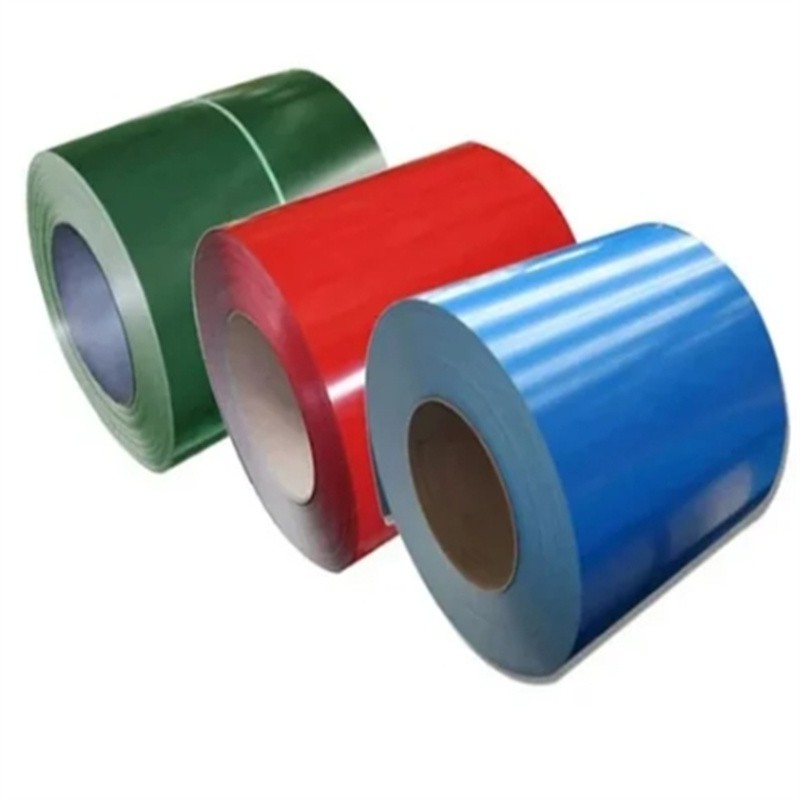

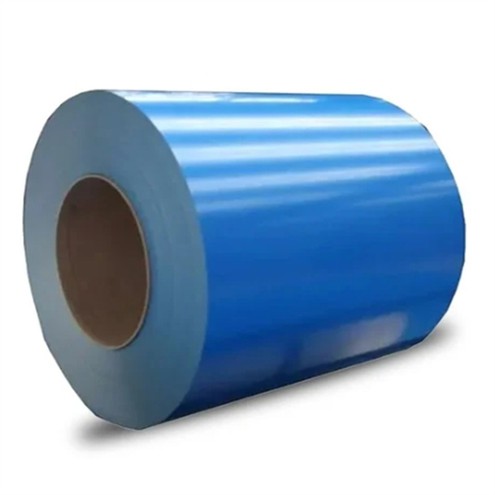

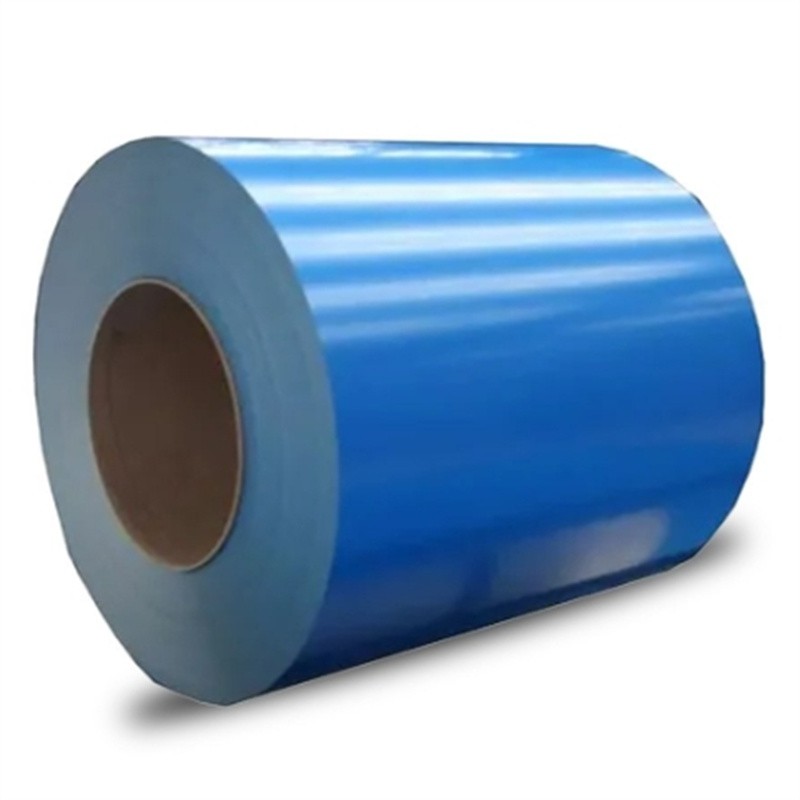

Prepainted Steel Coil – High Durability & Customizable Color Coated Steel
Factory direct price | 0.12-2.0mm thickness | 40-275g/m² zinc coating | 10-15 days delivery.
Get the quotation / Request free samples
Product Parameter Table
| Details | |
|---|---|
| Base material | Hot-dip galvanized steel (GI), hot-dip aluminized zinc steel (GL), electro-galvanized steel (EG). |
| Thickness range | 0.12mm – 2.0mm (tolerance: ±0.02mm). |
| Width range | 914mm, 1000mm, 1200mm, 1219mm. 1220mm, 1250mm (customizable). |
| Galvanizing layer thickness | 40g/m² – 275g/m² (double-sided). |
| Coating type | Polyester (PE), silicone-modified polyester (SMP), high weather-resistant polyester (HDP), polyvinylidene fluoride (PVDF). |
| Coating color | Full range of RAL color cards or custom-made for customers. |
| Inner diameter of the coil | 508mm / 610mm. |
| Weight of the coil | 3 tons – 8 tons (customizable). |
| Enforce standards | ASTM A755, JIS G3312, EN 10169 |
Product Details
One-stop steel procurement
What is coated steel sheet?
Coated steel sheet, also known as pre-coated steel sheet, is a composite material made from hot-dip galvanized sheet, hot-dip aluminized zinc sheet or electro-galvanized sheet as the base material. After undergoing surface chemical pretreatment, it is coated with one or more layers of organic coatings and then baked and solidified. It combines the strength of steel plates with the decorative and corrosion-resistant properties of organic coatings, and is widely used in building roofs, exterior wall panels, appliance shells, automotive components and other fields.
Our production process
In Yuxin, every roll of coated color steel undergoes a strict production procedure: high-quality base material unwinding → chemical pretreatment → precise coating (primer + topcoat + backcoat) → high-temperature baking and curing → cooling → winding and packaging. We use internationally renowned brand coatings and coating equipment to ensure strong coating adhesion, long-lasting color, and excellent weather resistance.
Product Core Characteristics
Through the aforementioned process, our coated steel sheet possesses three core characteristics: Firstly, it offers a wide range of colors, including solid colors, metallic colors, and pearlescent colors, which can meet various design requirements; Secondly, it provides dual protection. The galvanized layer of the base material and the organic coating on the surface form a barrier, and its resistance to salt spray, acid and alkali, and ultraviolet rays far exceeds that of ordinary steel sheets; Thirdly, it has excellent processing performance. The coating and the base material expand simultaneously, and it can withstand complex forming processes such as stamping, bending, and deep drawing without cracking or peeling.
Technical Specifications – CCS A Shipbuilding Steel Plate
| Parameters | The CCS regulations require | Our typical value | To you, it means... |
| Yield strength | ≥235 MPa | 250-280 MPa | Sufficient safety margin is maintained while ensuring processing performance. |
| Tensile strength | 400-520 MPa | 430-480 MPa | The strength is stable and the performance is reliable after welding |
| Elongation | ≥22% | 24-28% | Good cold bending forming performance, and the hull curved plates are not prone to cracking during processing |
| Carbon content | ≤0.21% | 0.16-0.18% | Excellent welding performance, reducing the preheating requirements |
| Manganese content | ≥2.5×carbon% | 0.8-1.2% | Ensuring strength while maintaining good toughness |
| Silicon content | ≤0.35% | 0.15-0.30% | Adequate deoxidation, and the steel plate is internally dense |
| Phosphorus and sulfur content | ≤0.035% | ≤0.025% | High purity, avoiding hot brittleness and layered tearing |
Core advantage
Outstanding corrosion resistance
The zinc layer on the substrate and the surface coating form a dual barrier, capable of withstanding salt spray tests for over 1000 hours. It is suitable for coastal high-salt spray and industrial polluted environments.
Rich customization options
From thickness, width, color to coating type, we offer flexible customization. The minimum order quantity is only 1 ton, and sample orders are supported to help you easily start the project.
Outstanding processing performance
T-shaped test can reach 0T - 3T, reverse impact energy is ≥ 9J. The coating has strong adhesion to the substrate. It does not fall off or crack during stamping, bending, and roll forming processes.
Stable supply chain
Established long-term cooperation with domestic major steel mills such as Ansteel, Hanzhou Steel, and Shougang. The supply of raw materials is stable. The regular inventory is over 2,000 tons. Regular specifications can achieve rapid delivery within 10-15 days.
Application scenario
why choose us?
We implement the ISO9001 quality management system. From the entry of raw materials into the factory to the delivery of finished products, a total of 6 key control points are set up: substrate inspection, chemical composition analysis, coating thickness measurement, coating adhesion test, color difference control, and mechanical performance test. Each batch of products comes with a factory test report, and it is also acceptable for on-site inspection by third-party institutions such as SGS and BV.
Our commitment
Professional services: Offer product selection, technical parameter consultation, and free sample support.
Reliable logistics: Cooperating with multiple international freight companies, we offer multimodal transportation solutions including sea freight, railway transportation, and land transportation.
After-sales guarantee: For product quality issues, we offer refund or exchange services or technical compensation solutions.
one-stop solution
professional team
high quality
our Partners
We trusted by
User Evaluation
Mr. Tan
Ms. Al-Hassan
Ms. Fernandez
FAQ
01.What is your payment method?
02.What is the minimum order quantity (MOQ)?
03.How long does the delivery period take?
04.Can you provide free samples?
05.How do you ensure product quality?
Hot Tags: Prepainted Steel Coil,PPGL, galvanized steel angle, galvanized steel bolt, galvanized steel coils, galvanized steel decking, galvanized steel nut, galvanized steel platform
