Products Description

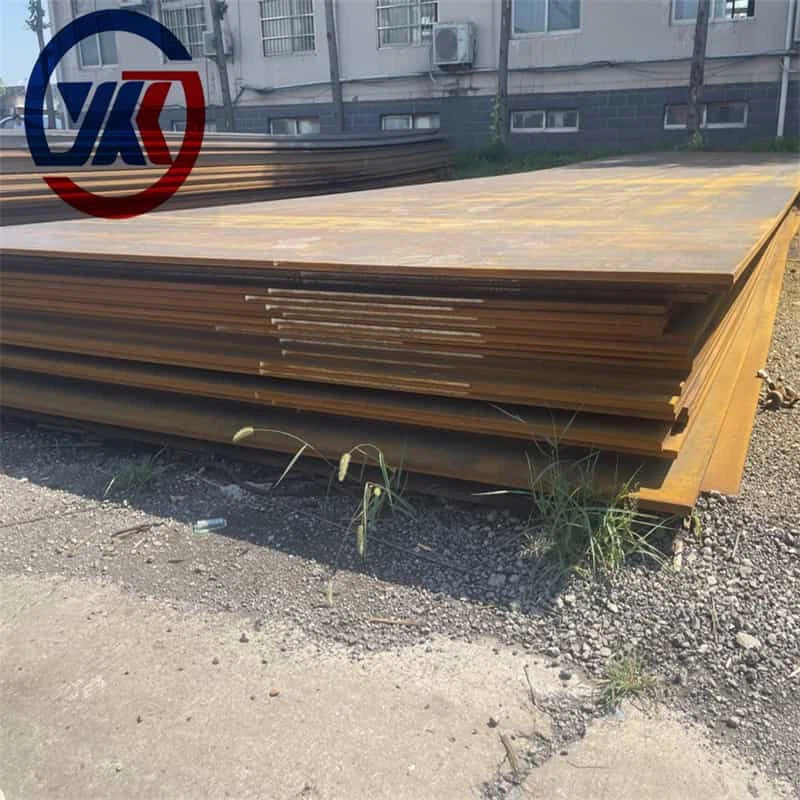

A516 Gr. 70 is a carbon steel plate widely used in low-temperature pressure vessels and conforms to the ASTM A516/A516M standard. The ASTM A516 Gr. 70 chemical composition must meet the requirements specified in this standard.
ASTM A516 Gr. 70 is primarily used in the fabrication of carbon steel plates for high-temperature and high-pressure vessels, boilers, and other pressure equipment. The standard ensures that the material's chemical composition, mechanical properties, and other performance characteristics meet strict requirements, providing safety and reliability in demanding environments. Our company supplies steel plates that fully comply with the ASTM A516 Gr. 70 standard. Please feel free to contact us for detailed product information and pricing.
Video
Chemical Composition
|
Element
|
A516 Gr.70 Requirement
|
Effect on Properties
|
|
C (Carbon)
|
≤0.27
|
Low carbon improves weldability but reduces strength.
|
|
Mn (Manganese)
|
0.85–1.20
|
Enhances strength and toughness.
|
|
P (Phosphorus)
|
≤0.025
|
High content causes cold brittleness.
|
|
S (Sulfur)
|
≤0.025
|
Reduces impact toughness if excessive.
|
|
Si (Silicon)
|
0.15–0.40
|
Acts as a deoxidizer, increases strength.
|
|
Al (Aluminum)
|
≥0.02 (if killed)
|
Refines grain structure, improves toughness.
|
|
CEV (Carbon Equivalent)
|
≤0.45
|
Measures weldability (CEV = C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15).
|
Product Characteristics
The chemical composition of ASTM A516 Gr. 70 gives it the following characteristics:
High strength
The reasonable ratio of carbon and manganese elements makes the steel plate have high strength. Carbon effectively increases the strength and hardness of steel, while manganese strengthens ferrite and increases the strength and toughness of steel. The two together, so that ASTM A516 Gr 70 steel plate can withstand greater pressure and load.
Good toughness
The steel plate maintains good toughness at low to medium temperatures. The element silicon helps to improve the toughness and fatigue resistance of the steel. In addition, the content of magazines should be strictly controlled during production to minimise the adverse effects of harmful impurities on the toughness of the steel.
Good welding performance
The carbon equivalent is low, generally not more than 0.47%, which makes the steel plate have good welding performance. In the welding process, not easy to produce cracks and other defects, easy to process and manufacture a variety of complex welded structural components.
Good corrosion resistance
Although ASTM A516 Gr 70 steel plate is mainly carbon steel, but added a small amount of copper, nickel and other elements, to a certain extent, to improve the corrosion resistance of the steel plate. So that it can be used in some corrosive environment, extending the service life of the equipment.
