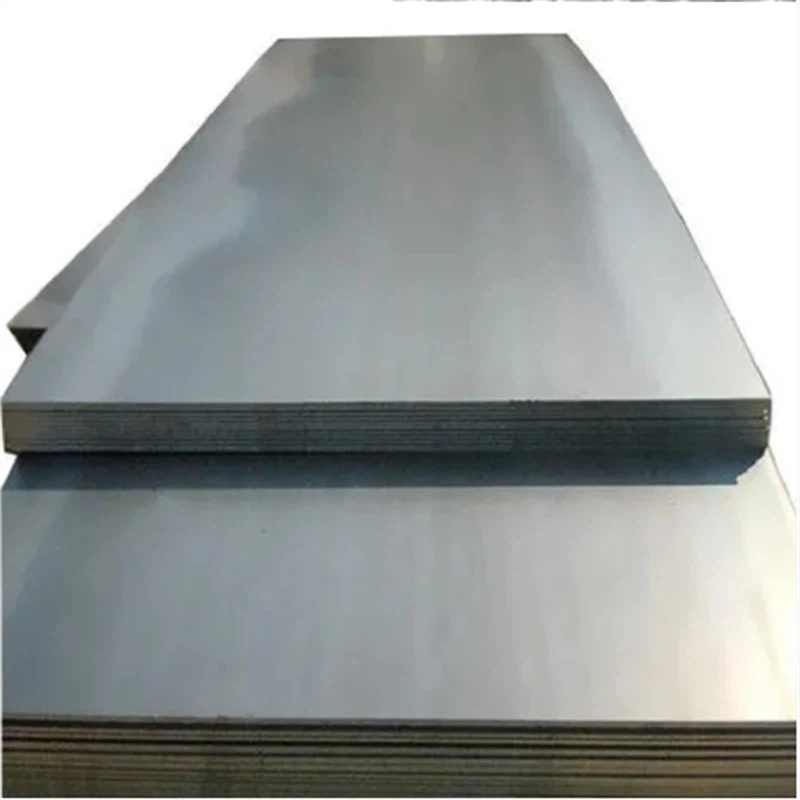

A517Gr steel plate
product key technologies
A517Gr steel plate Detailed introduction
All A517Gr series steel plates have high strength, good toughness and low crack sensitivity.
They are often used to manufacture equipment or components that require high material properties, such as pressure vessels, boilers, offshore platforms, ships, etc.
Chemical composition content of A517Gr steel plate:
Carbon (C) : 0.10-0.20%. Carbon is the main alloying element in steel and has a significant effect on the strength and hardness of steel. The right amount of carbon content can improve the strength and hardness of steel, but too high will lead to increased brittleness of steel.
Manganese (Mn) : 0.60-1.00%. Manganese in steel as a deoxidizer and desulfurizer, can improve the strength and hardness of steel, improve the cold working performance of steel, and help to improve the hardenability of steel.
Phosphorus (P) : ≤0.035%. Phosphorus is generally regarded as a harmful element in steel because it reduces the ductility and toughness of steel and increases the cold brittleness of steel. Therefore, it is necessary to strictly control the content of phosphorus in the production process of steel.
Sulfur (S) : ≤0.035%. Sulfur is also a harmful element, which will cause the hot brittleness of steel during hot processing, reducing the mechanical properties and weldability of steel.
Silicon (Si) : 0.15-0.35%. Silicon mainly plays a deoxidation role in steel, which can significantly improve the strength and hardness of steel, but also reduce the plasticity and toughness of steel.
Mechanical properties of S275J2 steel plate
A517GrA: As a class in the A517 series, A517GrA steel plate also has the characteristics of high strength, good low temperature toughness and low crack sensitivity. Specific performance parameters and application areas may vary depending on actual production and use.
A517GrB: This grade of steel plate belongs to the American standard pressure vessel quenched + tempered high-strength alloy steel plate, with high strength and toughness, suitable for occasions with high material performance requirements.
A517GrH: A517GrH steel plate is a high-strength low-alloy structural steel under the American ASTM standard, also known as "high-strength Cr-Mo steel". It has good comprehensive mechanical properties, including high strength, wear resistance, low temperature toughness, etc., and is widely used in the manufacture of key components such as pressure vessels and boilers.
A517GrQ: As another level of the A517 series, the A517GrQ steel plate also has high strength and excellent overall performance, suitable for a variety of high-end manufacturing fields.
A517GrS: Although there is less specific information about the A517GrS steel plate, it can be inferred that it is also a high-strength tempered steel plate of the A517 series, which has the common characteristics of this series of steel plates.
A517GrP: This grade of steel plate is also a member of the A517 series, and the specific performance and application areas may vary depending on the actual production needs.
A517GrF: As mentioned above, the A517GrF steel plate has the characteristics of high strength, good toughness and low crack sensitivity, and is an important grade in the A517 series.
A517GrE: A517GrE steel plate is a high-performance alloy steel plate with high tensile strength and yield strength, as well as good plasticity and toughness. It is widely used in petrochemical industry, ocean engineering, bridge construction, high-rise buildings and other fields.
